Description :

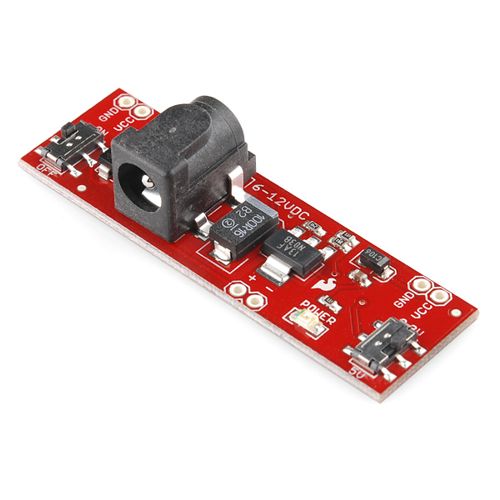

This is a very simple board that takes a 6-12V input voltage and outputs a selectable 5V or 3.3V regulated voltage. All headers are 0.1" pitch for simple insertion into a breadboard.

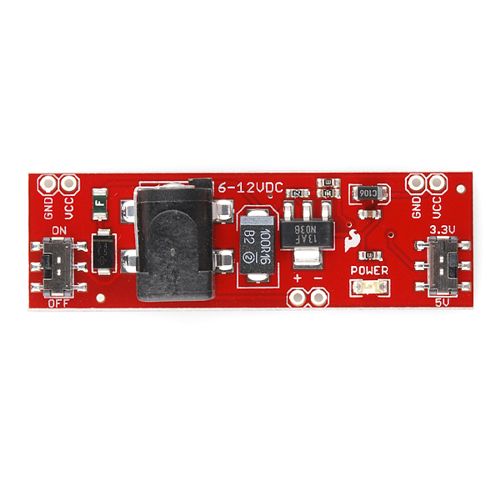

Input power can be supplied to either the DC barrel jack or the two pin header labeled + and -. Output power is supplied to the pins labeled GND and VCC. Board has both an On/Off switch and a voltage select switch (3.3V/5V).

The two pairs of GND and VCC pins are spaced such that when connected to our Basic Breadboard both power busses will be powered.

Dimensions :  2.15 x 0.65"

Features :

1、6-12V input voltage via barrel jack or 2-pin header

2、3.3V or 5V regulated output voltage

3、ON/OFF switch

4、Output voltage select switch

5、Power status LED

6、PTC fuse protected power

7、5.5x2.1mm center positive barrel jack


Click to download the Zip Document

Zip Document List :

1）：Manual

2）：Schmatic and PCB size

3）：Eagle Files
